F19 Blue, White - Glossy
Every little worthwhile change
In an evolving species, only the most calibrated change will result in progress. What really counts is neither strength nor intelligence. What makes the difference is the ability to adapt to change.
The Filante SL inherits its forms, its lines and its racing spirit from the Filante SLR, Wilier's high-end aero racing bike used by professionals in the most important World Tour competitions. What makes the change beneficial is the application of few and simple technical solutions. The different carbon fibre lamination used for the frame gives it a less extreme and more comfortable structure compared to the SLR version. All of this with a weight gain of just under 150 g for the same size frame.
The Filante SL inherits its forms, its lines and its racing spirit from the Filante SLR, Wilier's high-end aero racing bike used by professionals in the most important World Tour competitions. What makes the change beneficial is the application of few and simple technical solutions. The different carbon fibre lamination used for the frame gives it a less extreme and more comfortable structure compared to the SLR version. All of this with a weight gain of just under 150 g for the same size frame.
World Tour aerodynamics and design
The carbon fibre is used in a frame that mirrors the shape of the Filante SLR used by the professional cyclists of Groupama - FDJ Cycling Team. What changes is the frame module, using different fabrics made of composite material to create a new lamination. Though the substance may change, the aerodynamic performance does not.

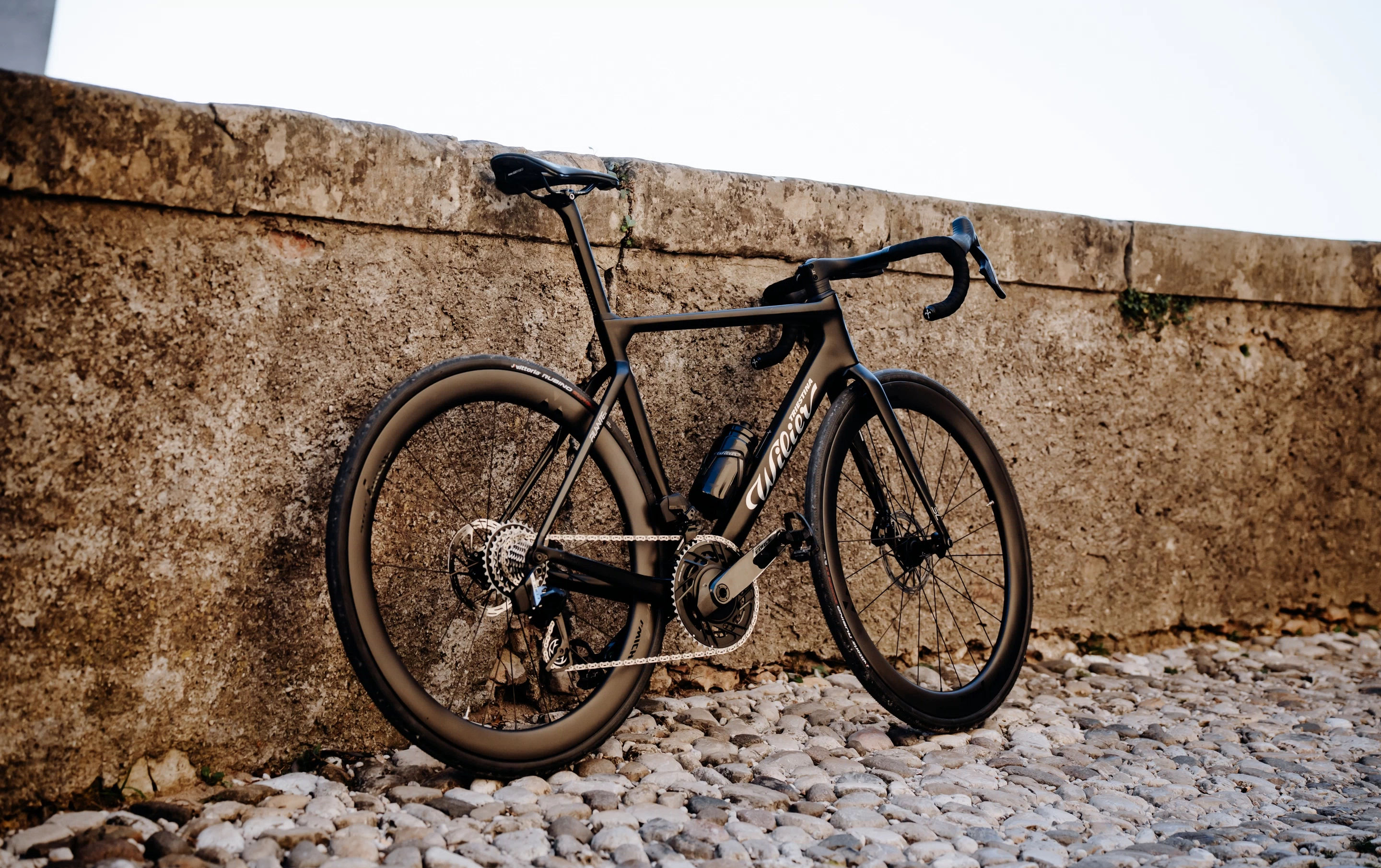

Six frame sizes, glossy finish
The Filante SL echoes the racing geometries of its big sister, the SLR. Six available frame sizes: XS, S, M, L, XL, XXL. Five available colours with glossy finish.
Smart integration
No visible cables. The monocoque handlebar allows the allure of the Filante product range to remain unchanged.A technical choice that makes possible to contain the price without compromising the performance and the possibility to easily personalise the setup.
SL philosophy
In addition to expanding the product range, the goal of each SL series bike is to provide the best quality/price/performance ratio. The use of technologies and setups that are less extreme aims to preserve the overall quality of each product. Did we succeed? You be the judge.
Geometries
| XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| C/C (cm) | 43.2 | 46.2 | 48.2 | 50.2 | 52.2 | 54.2 |
| L (cm) | 51.5 | 53 | 54.3 | 55.6 | 57 | 58.3 |
| H (cm) | 45 | 48 | 50 | 52 | 54 | 56 |
| A (°) | 75.2 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| L1 (cm) | 40.7 | 40.7 | 40.8 | 41 | 41.1 | 41.1 |
| H1 (cm) | 10.4 | 11.9 | 13.5 | 15.4 | 16.6 | 18.1 |
| A1 (°) | 70.8 | 72 | 72.5 | 73 | 73 | 73.5 |
| Reach (mm) | 380 | 384 | 388 | 391 | 395 | 399 |
| Stack (mm) | 505 | 521 | 538 | 555 | 571 | 587 |
| Wheelbase (mm) | 981 | 984 | 990 | 997 | 1002 | 1006 |
Improve your riding position with accu-fit
Correct positioning in the saddle is one of the most essential issues for cyclists, especially for competitors and long-distance cyclists. While with steel bikes, it was relatively easy to measure the length of the tubes, as the years passed, and with the introduction of sloping top tubes, defining measurements has become increasingly complex. So, in addition to the classic values of height, length and angles, we now consider reach & stack data and horizontal and vertical distance values between the centre of the bottom bracket and the centre of the upper part of the head tube.
But modern bicycles have made measurement even more complex, since they are complete and complex systems based on the combination of the frame, handlebar spacers and monocoque handlebars. When buying a bike, it is essential to know the size of every bike element based on your body size and shape. As manufacturers of frames and monocoque handlebars, we have added a new value to the measurement of the frame which combines the length of the head tube and the dimensions of the monocoque handlebar.
This coordinate, called ACCU-FIT, determines the distance between the bottom bracket's center and the handlebar's center. It is clear that for every model there are as many coordinates as frame sizes multiplied by the number of handlebar sizes and the configuration of spacers.
But modern bicycles have made measurement even more complex, since they are complete and complex systems based on the combination of the frame, handlebar spacers and monocoque handlebars. When buying a bike, it is essential to know the size of every bike element based on your body size and shape. As manufacturers of frames and monocoque handlebars, we have added a new value to the measurement of the frame which combines the length of the head tube and the dimensions of the monocoque handlebar.
This coordinate, called ACCU-FIT, determines the distance between the bottom bracket's center and the handlebar's center. It is clear that for every model there are as many coordinates as frame sizes multiplied by the number of handlebar sizes and the configuration of spacers.
Setup & Prices
| Code | Drivetrain Model | Wheelset | Price | |
|---|---|---|---|---|
| E539FMC | SRAM FORCE AXS D2 2X12S WITH POWERMETER | MICHE SWR EVO 50 | 7.500,00 € | |
| E539F2C | SRAM FORCE AXS D2 2X12S | MICHE SWR EVO 50 | 7.000,00 € | |
| E539LDC | SHIMANO ULTEGRA Di2 R8170 2X12S | MICHE SWR EVO 50 | 7.000,00 € | |
| E5395IC | SHIMANO 105 Di2 R7170 2X12S | MICHE SWR EVO 50 | 5.900,00 € | |
| E539V2C | SRAM RIVAL AXS D1 2X12S | MICHE SWR EVO 50 | 5.900,00 € | |
| E5395IS | SHIMANO 105 Di2 R7170 2X12S | MICHE SYNTIUM AERO | 5.100,00 € | |
| E539V2S | SRAM RIVAL AXS D1 2X12S | MICHE SYNTIUM AERO | 5.100,00 € |
The prices, specifications and photos shown in this catalog are not subject to any contractual obligation and may change during the season.
Support
FAQ
- How much does the frame weigh?The frame weighs 1010 grams for a painted size M.
- Which axles are available for Filante SL?The design of the frame is of the Speed Release type. The bike is shipped with traditional Miche full-extension thru-axle system as standard model.
- Are the frame parts the same as the Filante SLR?Yes. Seatpost, spacers, top cover, dropout and all metal parts are the same as Filante SLR.
- Do the integrated cables pass through the handlebar?The cables are fully integrated into the handlebar and frame, passing through the top superthin bearing. This design ensures clean aesthetics and high aerodynamic efficiency, enhancing both the bike's performance and its elegance.
- Is the superthin bearing available as a spare part?Yes. The upper superthin bearing is not normally available on the market but is a design owned by Wilier Triestina and will only be available in authorized dealer's shops.
- What tires can I install on Filante SL?The standard bicycle is fitted with 28 mm tires. The frame can accommodate tires with a maximum of 30 mm of actual width.
- What type of stem/handlebar can I install on Filante SL?The standard bicycle is fitted with Z Bar. With Wilier Triestina carbon spacers, Filante Bar and V Bar can also be installed.
- What configurations are possible with the Filante SL?Filante SL can be assembled only with electronic shifting and disc brakes.
