J18 Patterned Bronze - Glossy
Free to choose
Jena is a carbon gravel bike, designed to give you more freedom of choice when you go out for a ride. Jena was designed to satisfy any of your needs, whether it is performance on dirt roads and single track, or adventure, exploration, and bikepacking.
Jena is a light, reactive, and easy-to-handle bike with racing-comfort geometries, and able to adapt to the multiple uses required of a gravel bike.
Jena is a light, reactive, and easy-to-handle bike with racing-comfort geometries, and able to adapt to the multiple uses required of a gravel bike.
Racing comfort geometries
Jena's 60TON monocoque carbon frame comes in 5 sizes (from XS to XL) with geometries that allow a high level of comfort, without sacrificing reactivity and performance, which is very close to the one of Wilier's racing bikes.

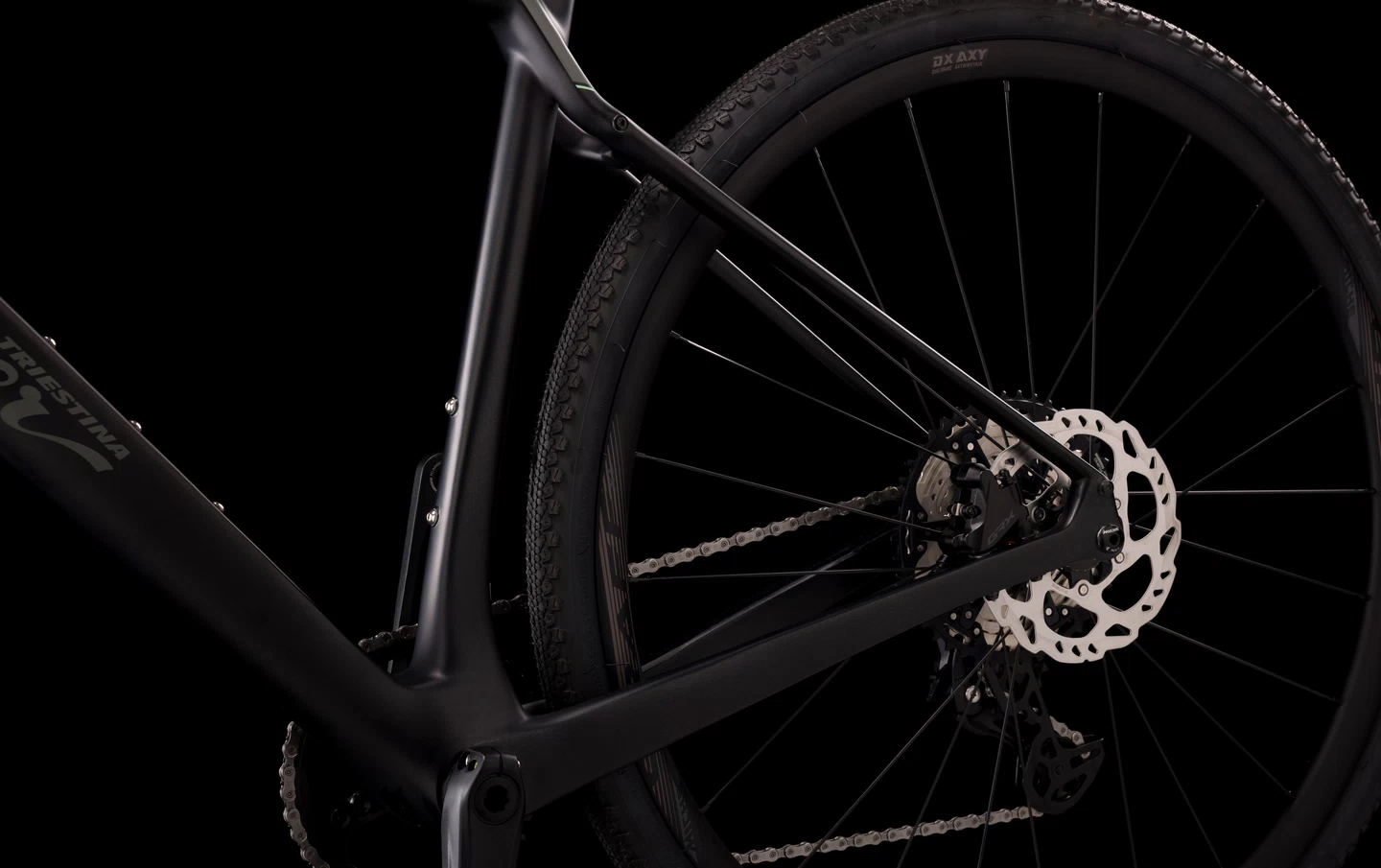

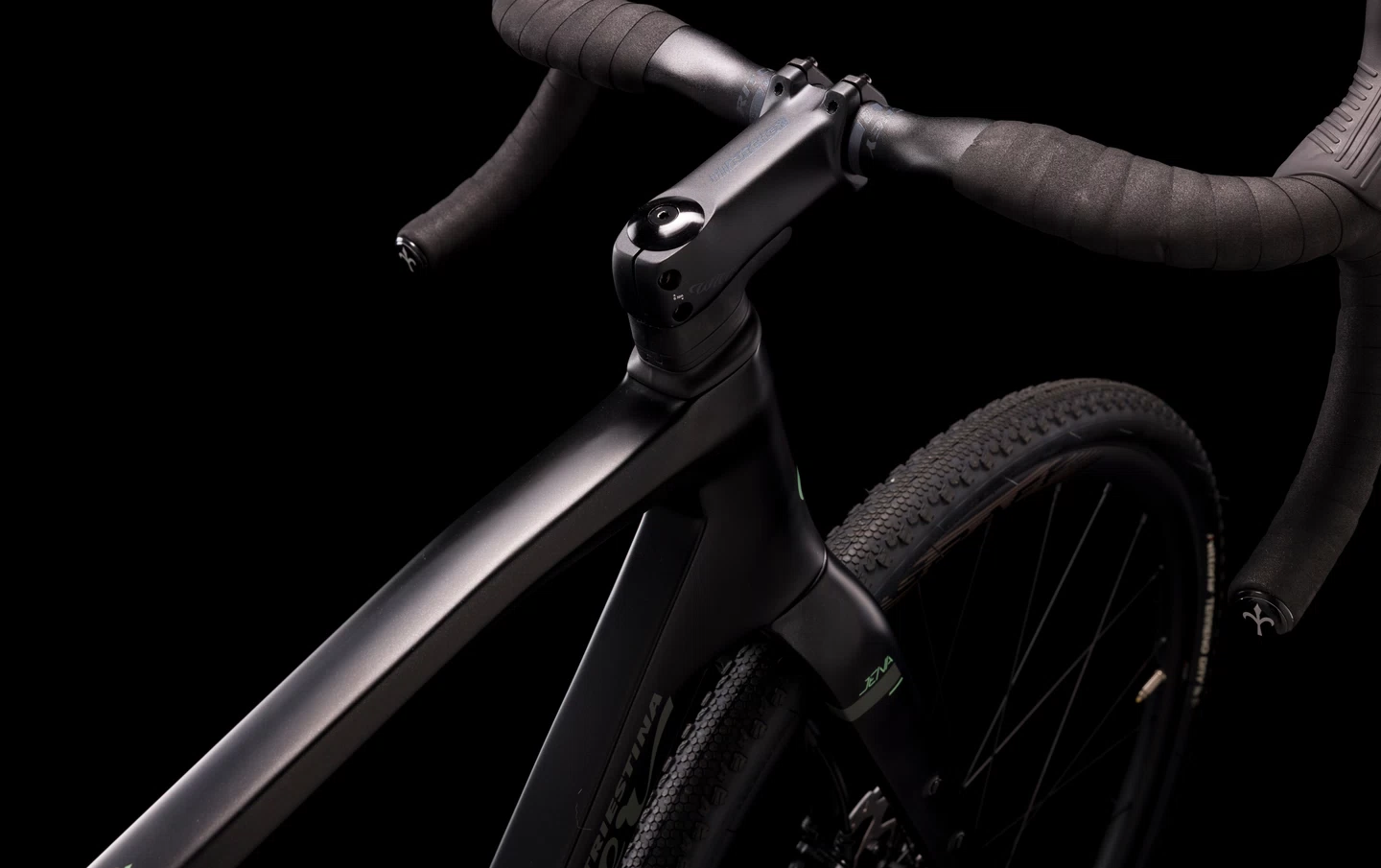

The head tube, with a more open angle, ensures riding quality and stability also on the most difficult tracks. On the other hand, the rear triangle was designed to have a more distinct response to vertical stress, absorbing thus great part of the vibrations generated by the ground imperfections.
The head tube, with a more open angle, ensures riding quality and stability also on the most difficult tracks. On the other hand, the rear triangle was designed to have a more distinct response to vertical stress, absorbing thus great part of the vibrations generated by the ground imperfections.
Usability
There are no limits on Jena usability and to the available configurations. The span between frame / fork and wheels allows you to install generous tyres on 28” wheels or MTB wheels with a 650B diameter. With 28” wheels you can install tyres up to 44 mm wide, whereas in case of 650B MTB wheels, you can even install 48 mm wide tyres, which is equivalent to 1.95” (tested on Vittoria tyre).

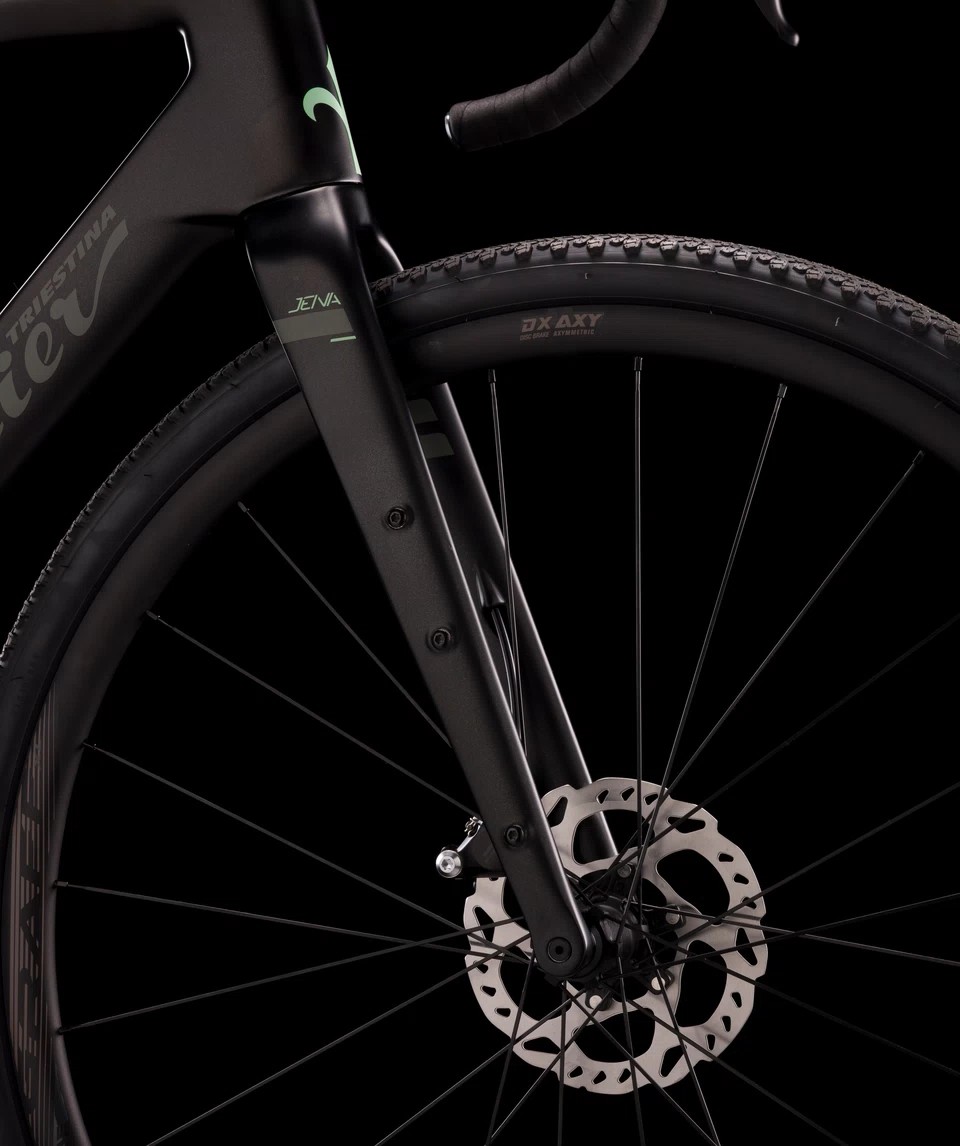

There are numerous available supports that allow the installation of bottle holders, bags, carriers or mudguards. On the front fork, for example, you can install two bottle holders or one lowrider carrier for bags.
There are numerous available supports that allow the installation of bottle holders, bags, carriers or mudguards. On the front fork, for example, you can install two bottle holders or one lowrider carrier for bags.
Flatmount disc brakes
Jena is available only with flat mount disc brake. The standard installed rotor has a 160 mm diameter. The wheel through pins have a 12mm diameter, 100mm long on the front fork and 142mm on the rear one.
Kamm tail design
An aerodynamic oblique tube was developed for Jena. This gives the classic truncated tail shape of Wilier's aerodynamic frames.
Removable derailleur support

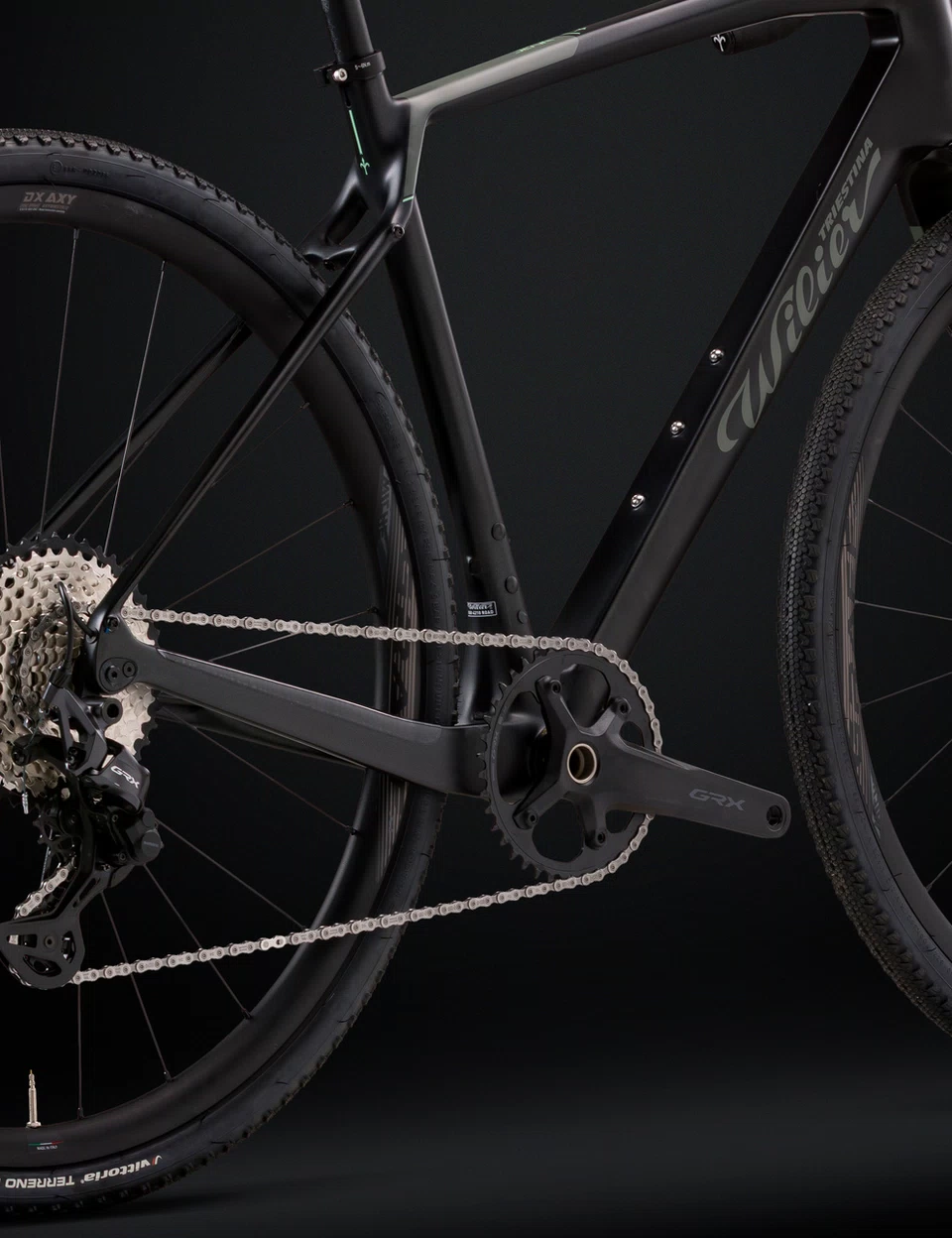

The derailleur support can be removed in case of single ring group, which is a transmission widely used by gravel enthusiasts. In any moment, you can choose a solution with double or single crankset, without compromising on the bike look.
Geometries
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| C/C (cm) | 38 | 41 | 44 | 47 | 51 |
| L (cm) | 50.8 | 53.1 | 55.4 | 57.7 | 60 |
| H (cm) | 44 | 47 | 50 | 53 | 57 |
| A (°) | 75 | 74.3 | 73.7 | 73.1 | 72.6 |
| L1 (cm) | 42.3 | 42.3 | 42.3 | 42.3 | 42.3 |
| H1 (cm) | 10 | 12.5 | 15 | 17.5 | 20 |
| A1 (°) | 70 | 70.5 | 71 | 71.5 | 72 |
| Reach (mm) | 363 | 372 | 382 | 391 | 401 |
| Stack (mm) | 531 | 556 | 582 | 608 | 633 |
Setup & Prices
| Code | Drivetrain Model | Wheelset | Price | |
|---|---|---|---|---|
| E416VXD | SRAM RIVAL XPLR AXS D1 1X12S | MICHE GRAFF XL 700c TLR ALLOY | 4.400,00 € | |
Frame: JENA - CARBON MONOCOQUE 60TON
Fork: JENA - CARBON MONOCOQUE 60TON
H-Bar: RITCHEY COMP ERGOMAX ALLOY
H-Bar weight: 320 g +/- 5%
Stem: RITCHEY ALLOY
Headset: CUSTOM SUPERSLIM 1-1/8" UPPER BR | FSA MR137 1-1/4" LOWER BR
Shifters: SRAM RIVAL AXS ED-RIV-D1
Brakes: SRAM RIVAL AXS ED-RIV-D1
Rotors: SRAM PACELINE RT-PLN-A1 160 / 160
Rear derailleur: SRAM RIVAL AXS RD-RIV1-E-D1 XPLR
Crankset: SRAM RIVAL FC-RIV-1W-D1 40T
Bottom bracket: SRAM DUB WIDE PRESS FIT 86.5
Cassette: SRAM RIVAL XPLR CS-XG-1251-D1 10-44T
Chain: SRAM RIVAL CN-RIV-D1
Tyres: VITTORIA TERRENO DRY 700x40c
Saddle: NOVUS BOOST™ EVO SUPERFLOW
Seatpost: ALLOY 27.2 mm
Axle: MICHE THRU AXLE 12X126.5F 12X172.5R
Frame weight: 995 g +/- 5%
Fork weight: 450 g +/- 5%
| ||||
| E416GMD | SHIMANO GRX RX610 1X12S | MICHE GRAFF XL 700c TLR ALLOY | 3.600,00 € | |
| E416YDW | SHIMANO GRX RX400 1x11S | MICHE CONTACT GR 700c ALLOY | 3.100,00 € | |
The prices, specifications and photos shown in this catalog are not subject to any contractual obligation and may change during the season.
Reviews
Support
FAQ
- What road surfaces can the Jena be used on?Jena is a gravel bike from Wilier Triestina. It is designed to be ridden on everything from tarmac to gravel tracks and offroad trails depending on wheel and tyre choice.
- The Jena is available in how many frame sizes?The Jena is available in 5 frame sizes from XS to XL.
- What is the frame construction?The Jena frame is constructed from 60Ton carbon fiber, like our top-end road bikes. The size M painted frame weighs 995g.
- What size wheels can be used in the Jena frame?The Jena can be used with both 700Cc road wheels or 650b MTB wheels. With 700c wheels, a tire up to 44mm wide can be fitted, whilst with 650b wheels the frame has clearances for 48mm tyres.
- What brake systems can be used?The Jena can only be used with flat-mount brake systems with a maximum rotor diameter of 160mm.
- Is it possible to fit mudguards?Yes. Jena has eyelets for the installation of mudguards front and rear, as well as rack mounts. The frame also has eyelets for double bottle cages on the main triangle and bottle/cargo cage mounts on both fork legs.
- What is the cargo carrying capacity of the Jena?The Jena can carry up to 15kg of cargo on the front fork and a maximum of 20 kg on the rear stays.
